Smart Rain Detection System: Harnessing Arduino and Raindrop Sensor Technology

Overview

In this blog post, we present a Rain Detection System utilizing a Raindrop Sensor Module and an Arduino UNO Board. The raindrop sensor detects rain and measures rainfall levels, making it a versatile component. This technology is widely used in automatic wiper systems, smart lighting, and sunroof controls in vehicles, showcasing its practical applications in enhancing functionality and automation.

Components Required

1. Arduino UNO R4/R3 Board
2. RainDrop Sensor Module
3. 5V Buzzer
4. LED
5. 220-ohm Resistor
6. Connecting Wires
7. Type C USB Cable
8. Breadboard

Features of the FC-37 or YL-83 Raindrop Sensor Module

• Wide area conductor strip for effective water droplet sensing
• Includes 8-inch Dupont cables for signal transmission
• Integrated LM393 comparator
• Operating Voltage: 3–5 Volts
• Signal Output Current: 15 mA
• Output Type: 3–5 Volts (Digital TTL)
• Analog Output: Up to 5 Volts
• M3 mounting holes for easy installation
• Built-in LED power indicator
• Built-in LED output indicator

Pinout of the FC-37 or YL-83 Raindrop Sensor Module

The FC-37 or YL-83 Raindrop Sensor Module typically features the following pins:

• VCC: Power supply (3–5V)
• GND: Ground connection
• DO: Digital output (TTL signal)
• AO: Analog output (0–5V)

Rain Sensor Board Pinout

The rain sensor board, a separate component connected to the control board, typically includes the following pins:

• Rain Sensor Pad: This component detects rain or water droplets.
• Connector Pins: These pins connect the rain sensor board to the control board, usually marked with ‘+’ and ‘-’ to indicate the correct orientation.

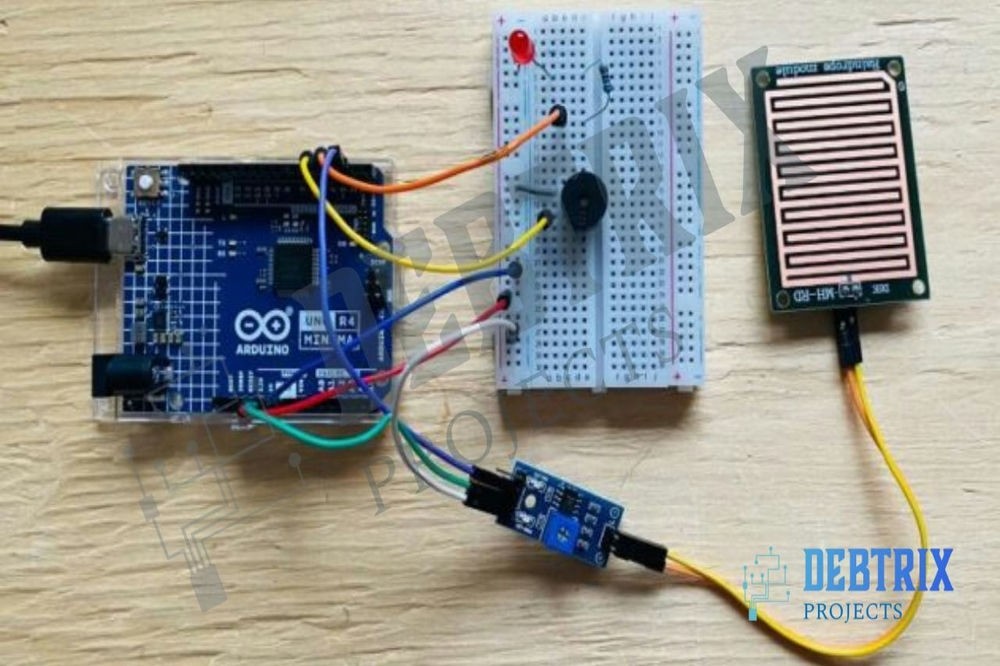

Rain Detection with Raindrop Sensor Module & Arduino

Discover the Raindrop Sensor Module paired with an Arduino for an efficient Rain Detection System. This setup allows for easy assembly following a provided circuit diagram, making it straightforward to connect and utilize. The module’s functionality can be quickly tested with simple Arduino code, perfect for those looking to enhance their projects.

Project Operation

The Rain Detection System functions by utilizing the raindrop sensor to detect water. When rain is detected, the sensor sends a signal to the Arduino through pin 2. The Arduino processes this signal and can activate an LED and a buzzer according to the programmed instructions, outputting signals to pins 3 and 4. This setup ensures a responsive and effective rain detection solution.
